TSC - 125 PPR PPH Material Pipe Bench Socket Fusion Plastic Welding Machine
Table Socket Fusion Welding Machine Presentation:
The table socket fusion machine is suitable for the socket fusion of pipes and fittings up to an outside diameter of 125 mm.
Table Socket Fusion Welding Machine Specification:
| Model | TSC-90 | TSC-125 |
| Working range | 20-90mm | 20-125mm |
| Materials | PE/PP/PVDF | PE/PPIPVDF |
| Rated power | 900w | 1400W |
| Rated voltage | 220VAC /50HZ | 220VAC /50Hz |
| Dimension (mm) | 630*700*570mm | 630*700*570mm |
| Frame weight | 32Kg | 33Kg |
| NwIGw | 40/60Kg | 53/73Kg |
Advantages:
1. Accurately control the welding depth of different pipes and fittings
2. Accurate control the depth that pipe insert fittings
3. The diameter selector can avoid over-melting caused by excessive force when
pipes are inserted into pipes
4. Mechanical operation makes each welding interface Standardization ,improve welding
quality.
Package & Delivery:
1. Choose fumigation-free wooden box packaging
We have sufficient stock can dispatch the machine to you immediately.
2. You can choose courier or sea freight, air freight.
Standard composition:

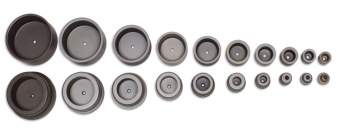

Machine body,heating plate,tool kit,20,25,32,40,50,75,63,90,
110,125,140,160mm sockets and spigots
Service:
1. Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
2. 24-hour online customer service to solve after-sales problems, professional engineer guidance + video teaching
